SLM 3D Printer

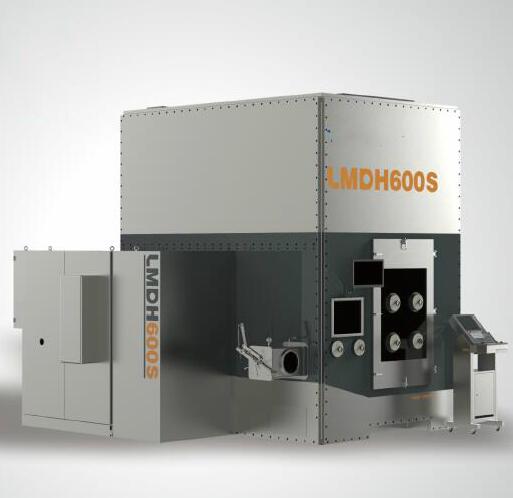

LMDH-600S

Model	LMDH-600S
Work size	φ625mm	Laser type	Fiber
X/Y/Z axis travel	800/800/550mm	Laser Power	4kw
A axis travel size	±130°	Beam diameter	φ0.8~4mm
C axis travel size	360°	Powder feed speed	6~100g/min
X/Y/Z axis position accuracy	0.008mm	Powder tank	2X2L
A/C axis position accuracy	8′′	Forming efficiency	≥200cm³/h
X/Y/Z axis re-position accuracy	0.005mm	Water oxygen content	≤10ppm
A/C axis re-position accuracy	5′′	Protective gas	N₂/Ar
Spindle Max speed	18,000rpm	Other size optional

Product description:
INQUIRY EMAIL

Application:

suitable for the needs of aerospace, automobile, mold, petroleum machinery and other fields. The equipment can freely switch the additive molding and subtractive processing, meeting the needs of additive and subtractive composite manufacturing and repair and remanufacturing. The cradle-type five-axis structure can make the unsupported forming of complex structures; the overall atmosphere protection system optional, to meet the composite manufacturing requirements of titanium alloy and other easily oxidized material parts; the tool gas cooling technology is adopted,it avoids the contamination of the surface of the parts by the chip liquid, and improves the tool life and the surface quality of the parts.

Material:

Titanium alloy, stainless steel, die steel, high temperature alloy, copper alloy, etc.
