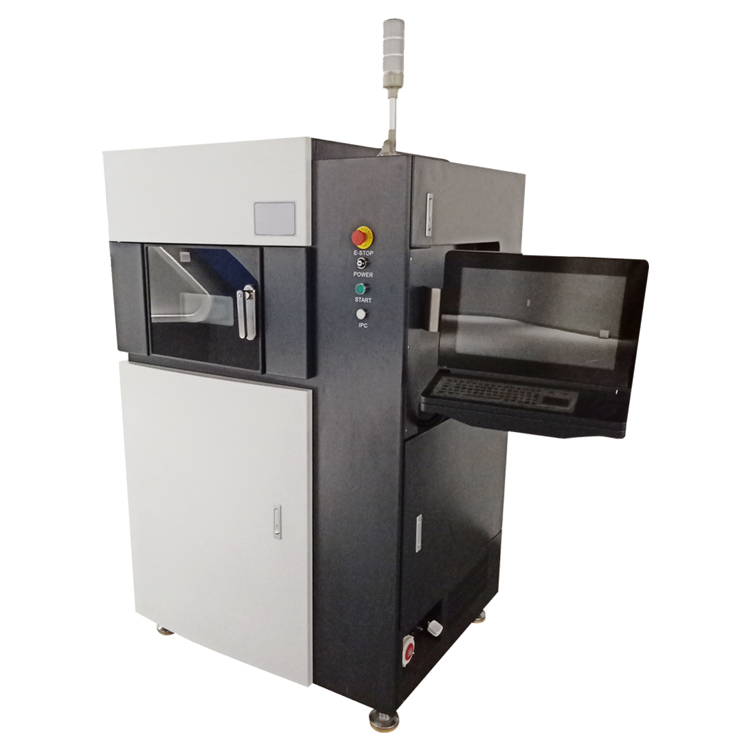

Micron 3D Printer PTM-2/5/10

• Model	PTM-2	PTM-5	PT-10
  Optical accuracy	2um	5um	10um
  Print size（X/Y）	Single size: 7.6*4.3mm	Single size:19.2*10.8mm	Single size:38.4*21.6mm
  (size can be extended)
  Print height Z(size can be extended)	30mm	30mm	50mm
  Optical	405nm DLP	405nm DLP	405nm DLP
  Projected optical power density	≤50w/c㎡	≤15w/c㎡	≤15w/c㎡
  Z-axis motion resolution	5um	5um	10um
  Power supply	220V AC 50HZ	220V AC 50HZ	220V AC 50HZ
  Whole machine size	940*940*1840mm	940*940*1840mm	940*940*1840mm



• Product description:
  Applications:

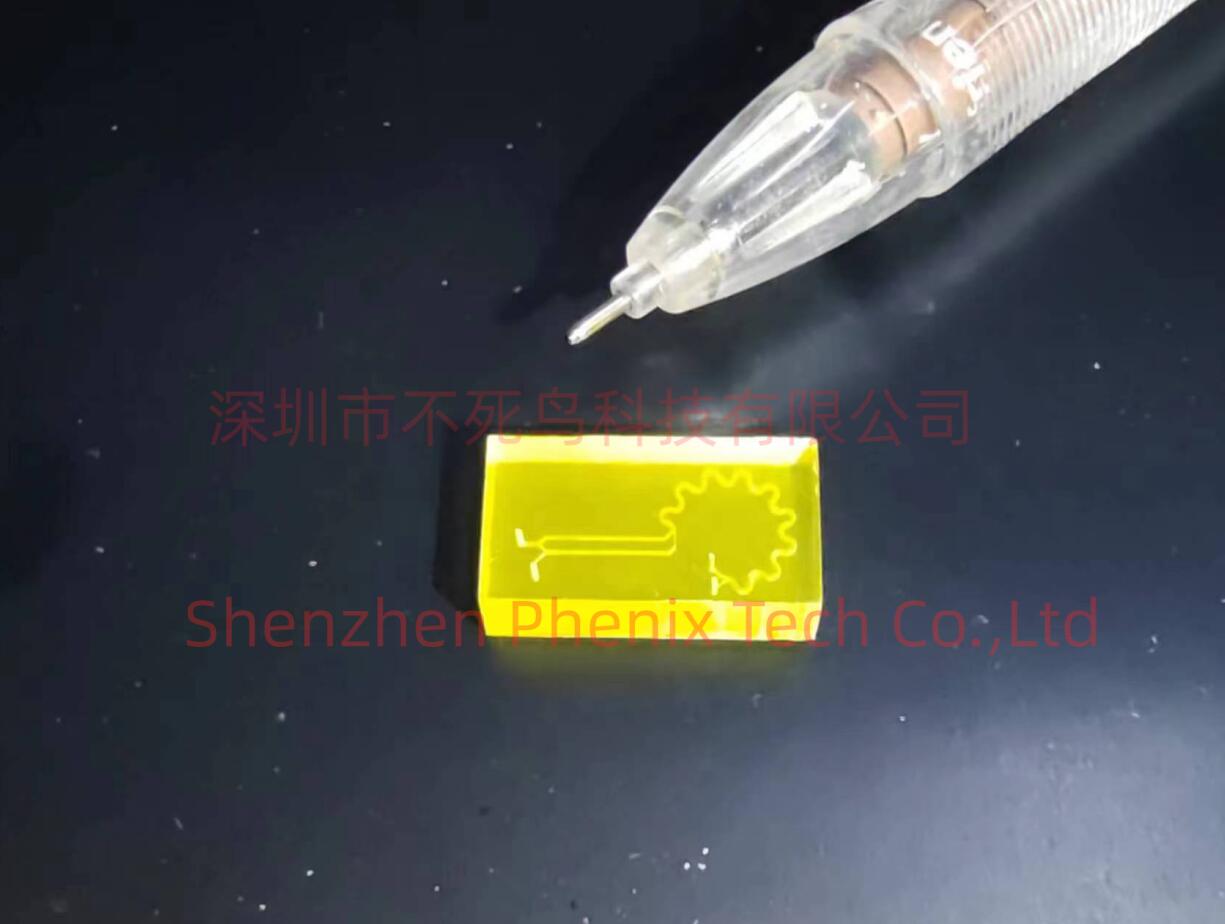

  Microfluidics: biological, healthcare, medical, environmental analysis, food & agricultural research, etc.

  Micromechanics: advanced manufacturing, optical materials, components, cameras and modules, etc.

  Precision medical devices: biomedical, beauty, health, etc.

  Precision electronics: 5G consumer electronics, entertainment, cell phones, automotive electronics, audiovisual, digital electronics, robots, drones, semiconductor processing/manufacturing, PCB, integrated circuits, etc.

  Scientific research: security / defense, aviation / aerospace, sensing and test measurement, intelligent sensors, research institutes, etc.


  Materials:
  Hard resins, flexible resins, biocompatible resins, high temperature resistant resins, ceramic resins, and other engineering resins and functional resins,etc.
