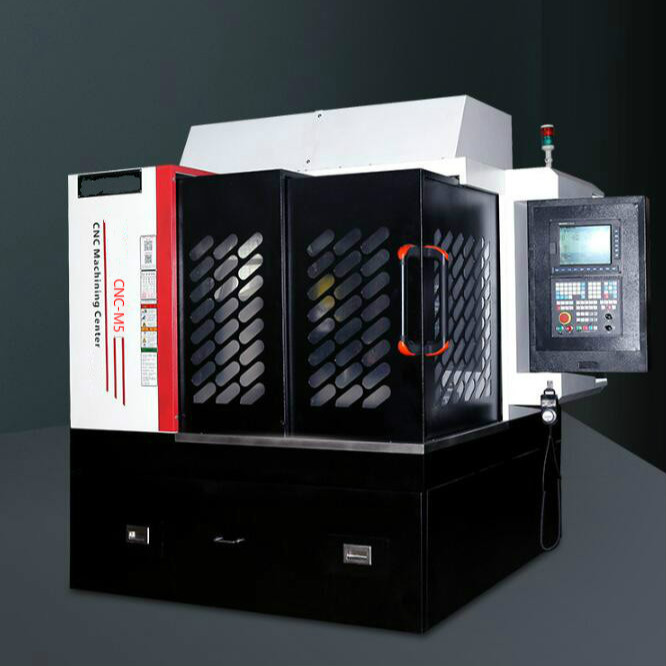

5軸CNC金属成形機

• Name	Cnc metal mold machine
  Model	PT-M5
  Work size	650*500*250mm(Optional)
  Travel	X axis travel	650mm
  	Y axis travel	500mm
  	Z axis travel	250mm
  	A axis	±110°
  	C axis	360°
  Spindle ER20	Spindle end to platform size	50~300mm
  	Spindle power	3.2KW
  	Spindle speed	18000~24000rpm
  Accuracy	Position accuracy	±0.01/300mm
  	Re-position accuracy	±0.008/300mm
  Speed	X/Y/Z move	10,000mm/Min
  	Process	8,000mm/Min
  Machine info	whole size	1,860*1,850*1,970mm
  	Weight	2,250kgs
  	Electricity	7KVA   380V
  Warranty	1 year
